Model Name: DP75D6
Product Type: Generator Packages
Description
Engineered specifically for the Canadian marketplace, the DiPerk DP75D6 features the Perkins 1103A-33TG1 engine that provides cost effective power solutions for prime and standby generation. This 3.3 litre, turbo charged 3 cylinder engine features exceptional performance criteria in fuel economy for prime power applications and high load acceptance for standby installations. The Leroy Somers brushless alternator utilized on this model is manufactured to exact specifications using the best manufacturing methods. DiPerk generators use electronic technology to control the voltage with a voltage variation of less than 0.25% throughout the entire power range.
Inquire Now
Specifications
Power Ratings: 60kW Standby / 54kW Prime
Engine: Perkins 1103A, Turbocharged, heavy duty diesel engine, 4 stroke, 1800rpm, Liquid cooled, Electronic governed
Alternator: Leroy Somers, 12 Lead brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation, UL1446 LISTED (3 Ph 208V, 240V, 480V & 600V)

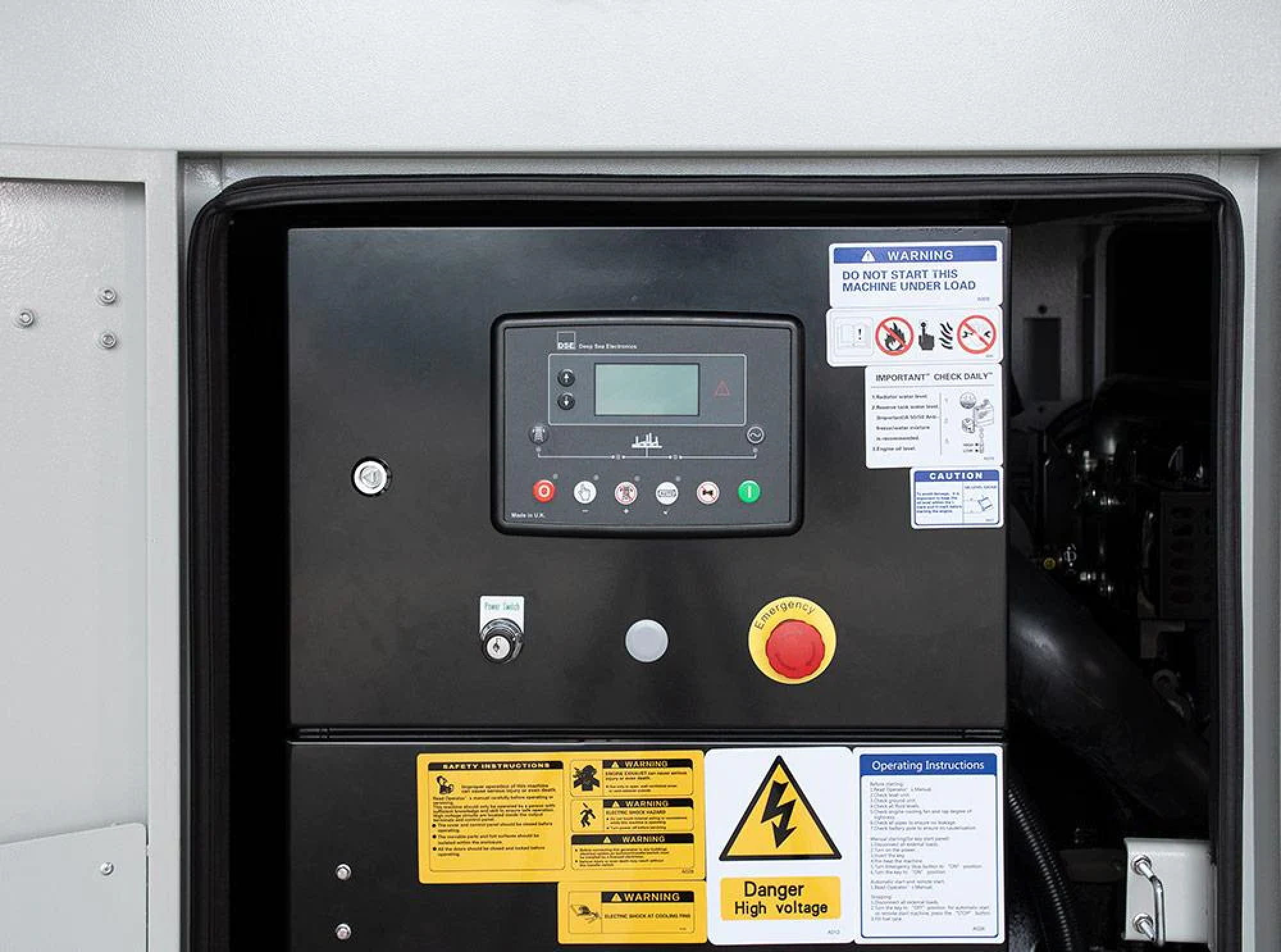

Controls: Deep Sea DSE4520, ADVANCED Digital auto-start/stop control panel. All genset parameter, alarms and control functions.
Battery Charger: DSE9470 10A 12V MKII is an intelligent switch-mode battery charger that can be programmed for different charging curves which helps maximize battery life. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.
Battery: Varta 60Ah 580 CCA maintenance free battery
Jacket Water Heater: Hotstart TPS202GT10-008 2kw coolant heater designed to maintain optimal coolant temperature to make sure your generators start on time – every time.
Fuel Tank: Integral 145L (38 Gal) diesel fuel tank complete with fuel level sender
Emissions Compliancy: Canada Stationary
Engine Warranty: Standby: 3 Years - 1500 hours (500 hours per year)
Prime: 1 Year - Unlimited HoursGenerator Package Warranty: 1 Year - 1000 hours
Quality: Designed and built to ISO9001 & CSA Standards.
